BLE Mesh Module- PT825XXBTV2

The PT825XXBTV2 integrates a power-balanced 32-bit MCU, BLE/2.4GHz Radio, 48kB SRAM, 512kB internal Flash, 14bit ADC, 6-channel PWM (1-channel IR/IR FIFO/IR DMA FIFO) and flexible GPIO interfaces.

  • Embedded low-power 32-bit MCU, which can also function as an application processor.

    • Clock rate: 48 MHz
    • Operating voltage: 1.8 V to 3.6 V (Under 1.8 V to 2.7 V, the module can start but the RF performance is
      not guaranteed. Under 2.8 V to 3.6 V, the module performance is normal.)
    • Peripherals: Six pulse width modulation (PWM) interfaces.
    • Bluetooth RF features
      – Bluetooth LE 5.0
      – Up to 2 Mbit/s RF data rate
      – TX power: +10 dBm
      – RX sensitivity: –94.5 dBm at 1 Mbit/s
    • Embedded advanced encryption standard (AES) hardware encryption
    • Onboard PCB antenna with 2.5 dBi gain
    • Operating temperature: –40°C to +125°C


    Applications

    • Smart LED lights
    • Smart households
    • Smart low-power sensors

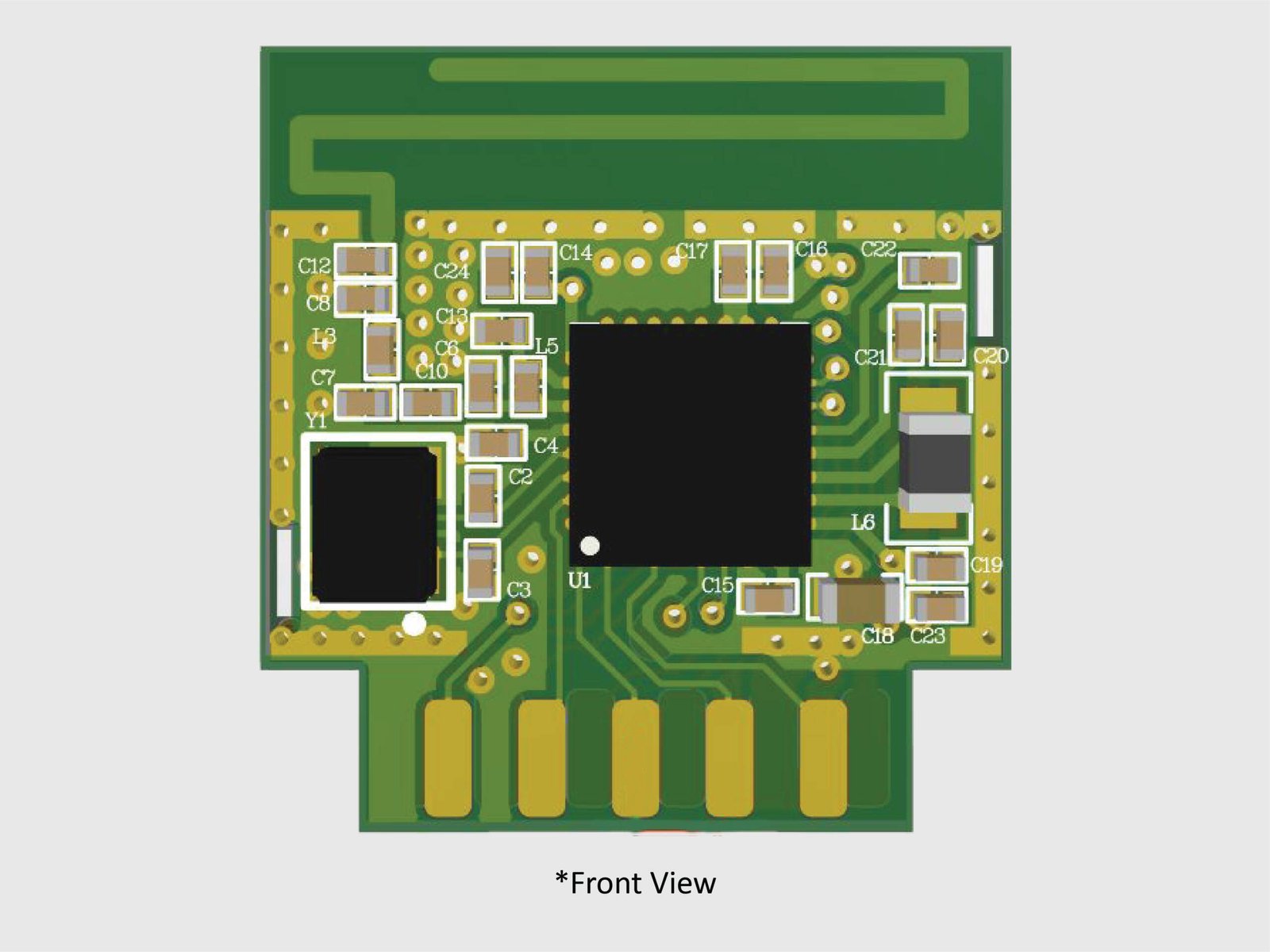

Pin definition

The following table shows definitions of pins:

Pin No. Symbols I/O type Function
1 RST I/O Hardware Reset
2 D2 I/O NA
3 D3 I/O I/O pin programmed to drive Red LED as PWM Output
4 D4 I/O I/O pin programmed to drive Green LED as PWM Output
5 A0 AI I/O pin programmed to drive Blue LED as PWM Output
6 VDD P Power Supply Pin (3.3V)
7 GND P Power Supply Reference to Ground Pin
8 RX I/O Serial Interface receiving pin (UART RX)
9 TX I/O Serial Interface transmission pin (UART TX)
10 B5 I/O I/O pin programmed to drive Warm White LED as PWM Output
11 B4 I/O I/O pin programmed to drive White LED as PWM Output

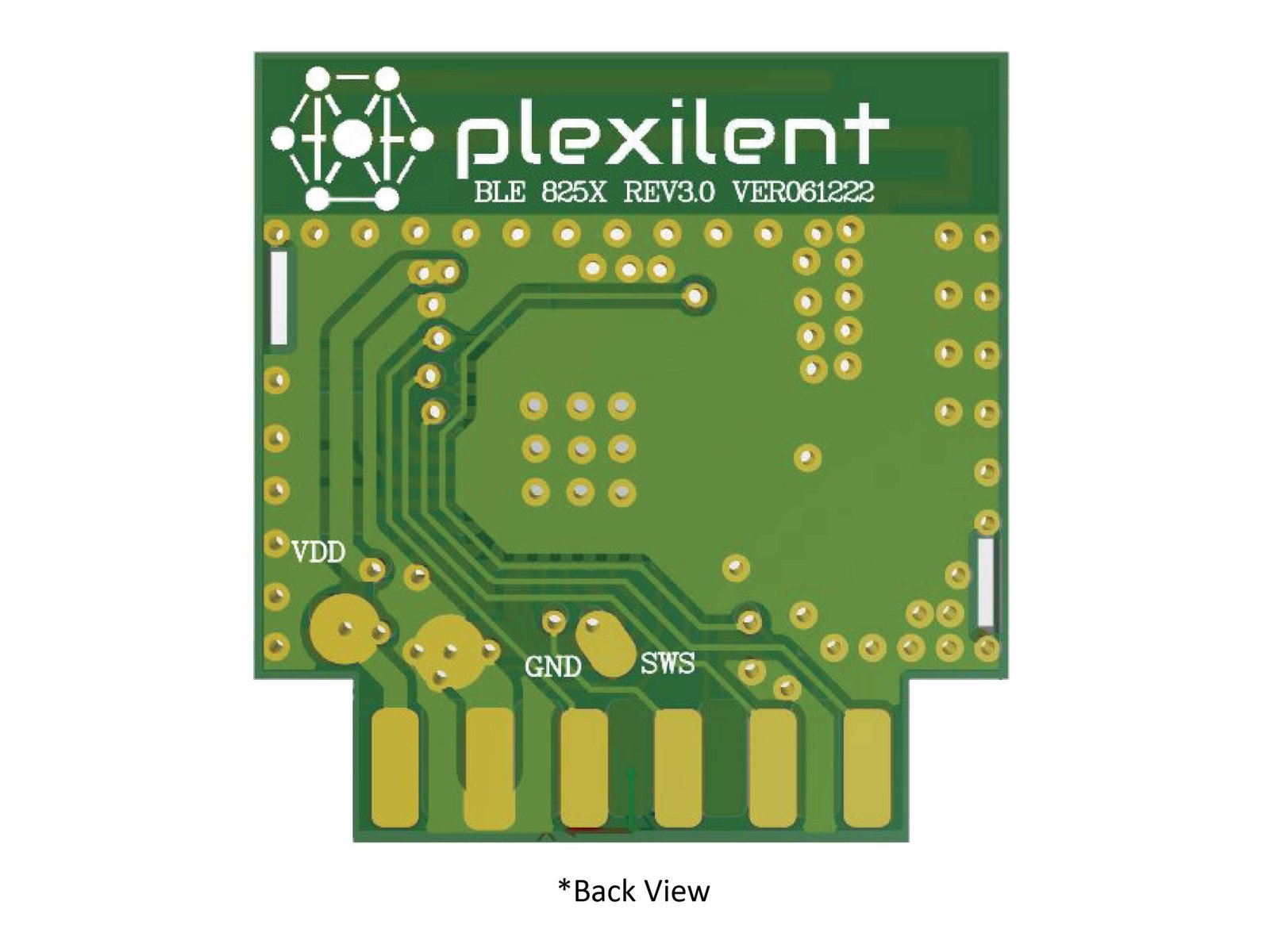

Note: 1. P signifies a power supply pin, I/O represents an input/output pin, and AI denotes an analog input pin. 2. If you have any particular needs for controlling light colors via PWM outputs, please contact the business personnel at Plexilent. 3. Provision for programming the modules (SWS Pin) are kept on the back side of the module.

Electrical parameters

Absolute electrical parameters

Parameter Description Minimum Value Maximum Value Unit
Ts Storage temperature -65 150 °C
VCC Power supply voltage -0.3 3.9 V
ESD voltage (human body model) TAMB-25°C - 2 KV
ESD voltage (human body model) TAMB-25°C - 0.5 KV
Electrical conditions
Parameter Description Minimum Value Typical value Maximum Value Unit
Ts Operating temperature -40 - 125 °C
VCC Operating voltage 1.8 3.3 3.6 V
VIL I/O low-level input VSS - VCC*0.3 V
VIH I/O low-level input VCC*0.7 - VCC V
VOL I/O low-level input VSS - VCC*0.1 V
VOH I/O high-level output VCC*0.9 - VCC V
RF features

Basic RF features

Parameter Description
Frequency band 2.4GHz ISM band
Wireless standard Bluetooth LE 4.2/5.0
Data transmission rate 1 Mbps, 2 Mbps
Antenna type Onboard PCB antenna
RF output power
Parameter Minimum Value Typical value Maximum Value Unit
Average RF output power -22 10 10.5 dBm
20 dB modulation signal bandwidth (1 Mbit/s) - 2500 - KHz
20 dB modulation signal bandwidth (2 Mbit/s) - 1400 - KHz
RF features

RF RX sensitivity

Parameter Minimum Value Typical value Maximum Value Unit
RX sensitivity 1Mbps - -94.5 - dBm
RX sensitivity 2Mbps - -91 - dBm
Frequency offset 1Mbps -250 - +300 KHz
Frequency offset 2Mbps -300 - +200 KHz
Co-channel interference suppression - -10 - dB
Antenna

Antenna type

PT825XXBTV2 uses an onboard PCB antenna with a gain of 2.5 dBi.

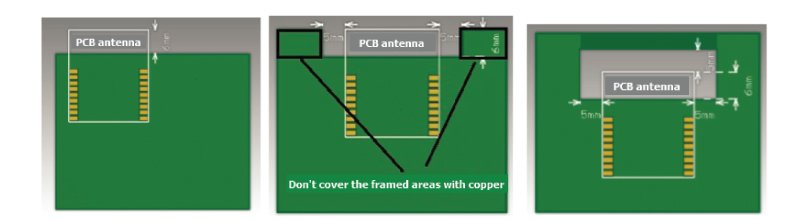

For optimal RF performance, it is advisable to keep the antenna at a minimum distance of 15 mm from other metal components. Presence of metal objects in close proximity to the antenna may significantly diminish wireless signal strength, ultimately impacting the RF performance. Therefore, when creating a final product, sufficient space must be allocated for the antenna.

6 MOQ and packaging information
Here is the corrected HTML table, recreated to match your screenshot as closely as possible. I have preserved the exact text, product series, temperature ranges, part numbers, quantities, and merged-cell structure. I have also kept the original abbreviations without correcting or changing them. ```
Product Series Temperature
Range
Production
Description
Product
Part No.
Minimum Order
Quantity
PT8251XBTV2 -40°C ~ 85°C Dimmable Modules
(1CH)
PT8251ABTV2 1000
-40°C ~ 105°C PT8251BBTV2 1000
-40°C ~ 125°C PT8251CBTV2 1000
PT8252XBTV2 -40°C ~ 85°C CCT Tunables &
Dimmable Modules
(CCT)
PT8252ABTV2 1000
-40°C ~ 105°C PT8252BBTV2 1000
-40°C ~ 125°C PT8252CBTV2 1000
PT8253XBTV2 -40°C ~ 85°C RGB Tunables &
Dimmable Modules
(RGB)
PT8253ABTV2 1000
-40°C ~ 105°C PT8253BBTV2 1000
-40°C ~ 125°C PT8253CBTV2 1000
PT8254XBTV2 -40°C ~ 85°C RGB WW Tunables
& Dimmable
Modules (4CHWW)
PT8254ABTV2 1000
-40°C ~ 105°C PT8254BBTV2 1000
-40°C ~ 125°C PT8254CBTV2 1000
PT8255XBTV2 -40°C ~ 85°C RGBCW Tunables
& Dimmable
Modules (4CHCW)
PT8255ABTV2 1000
-40°C ~ 105°C PT8255BBTV2 1000
-40°C ~ 125°C PT8255CBTV2 1000
PT8256XBTV2 -40°C ~ 85°C RGBCWW
Tunables &
Dimmable Modules
(RGBCW)
PT8256ABTV2 1000
-40°C ~ 105°C PT8256BBTV2 1000
-40°C ~ 125°C PT8256CBTV2 1000
PT8257XBTV2 -40°C ~ 85°C Isolated
CCT Tunables &
Dimmable Modules
(CCTI)
PT8257ABTV2 1000
-40°C ~ 105°C PT8257BBTV2 1000
-40°C ~ 125°C PT8257CBTV2 1000
PT8258XBTV2 -40°C ~ 85°C Dimmable Modules
For Fan (FAN)
PT8258ABTV2 1000
-40°C ~ 105°C PT8258BBTV2 1000
-40°C ~ 125°C PT8258CBTV2 1000
IMPORTANT NOTICE

  • Based on security issues, please ensure that the positive pole of the power in the product don’t contact with the machine of metal material directly, or use the insulating materials for isolation, avoid short circuit and dangerous in the assembly of the product.

  • Avoid twisting, bending, strong collision and falling damage in the assembly of this product. Please take care about ESD every time.
ANNEXURE

Contents covered in this article may be updated without notifying customers, all mentioned trademarks are registered by Plexilent, all above belong to Lumens Technologies Pvt. Ltd. Any unauthorized use is prohibited.
